Product Description

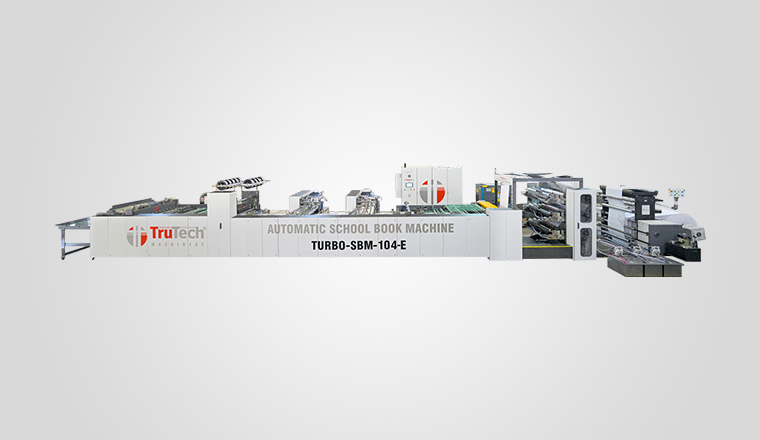

TRUTECH Automatic School Book Machine consists of shaft based reel unwinding stand, ruling / flexo printing tower, cross cutting unit, sheet overlapping unit, sheet counting and collating unit, inserter for pre-printed title/index sheet, pinning unit, folding unit, back pressing unit, front cutting, book partition unit and delivery table along with centralized control panel (PLC) with lubrication system.
Technical Specification
| MODEL | SUPREME-SBM-104 | TURBO-SBM-104-E | TURBO-SBM-91-E |
|---|---|---|---|
| Web speed* | 250 meters per minute | 300 meters per minute | 300 meters per minute |
| Converting Strokes per minute | 40 Cycles per minute | 50 Cycles per minute | 50 Cycles per minute |
| Reel width | 410 mm to 1040 mm | 410 mm to 1040 mm | 410 mm to 910 mm |
| Reel Diameter | 1200 mm | 1400 mm | 1400 mm |
| Core Diameter | 70 to 110 mm | 70 to 110 mm | 70 to 110 mm |
| Reel Weight (Maximum) | 800 Kgs | 1550 Kgs | 1550 Kgs |
| Colours | 2 Colours (Front-Back) | 2 Colours (Front-Back) | 2 Colours (Front-Back) |
| Printing width | 410 mm to 1030 mm | 410 mm to 910 mm | 410 mm to 910 mm |
| Sheet count-maximum | 55 sheets (220 pages) | 55 sheets (220 pages) | 55 sheets (220 pages) |
| Sheet count-minimum | 6 sheets (24 pages) | 6 sheets (24 pages) | 6 sheets (24 pages) |
| Core ID | 76.2 | 76.2 | 76.2 |
| No. of ups | 5 ups. | 5 ups. | 4 ups. |
| Cutting length | 290 to 450 mm (5mm Variation) | 290 to 450 mm (5mm Variation) | 290 to 450 mm |
| Paper GSM | 45 GSM to 75 GSM | 45 GSM to 75 GSM | 45 GSM to 75 GSM |
| Title GSM | 50 to 600 | 50 to 600 | 50 to 600 |
| Stitching Thickness | 8 mm | 8 mm | 8 mm |
